Overview

Connect candlestick’s OHLC To %Scale lets you position a candle’s Open / High / Low / Close on a percentage zone of a selected scale.
For each connection, you can:

• pick the candlestick OHLC to align.
• pick which scale to use to align your candlestick OHLC (Trend%Scale or the reference candle’s First%Scale/Second%Scale).
• Set a Min–Max range, the candle’s OHLC price must fall within that range on the chosen scale.

Trend%Scale is available only when Trend Direction is Bullish or Bearish Trend. Otherwise, pick a candle’s First/Second%Scale.

OHLConnect

You can set up to three of a candle’s OHLC prices to align with specific percentage range on a chosen percentage scale.

Fields

• OHLC: Open / High / Low / Close.
• Scale: Trend%Scale or the reference candle’s First%Scale / Second%Scale.
• Min–Max %: minimum and maximum percentage range value.

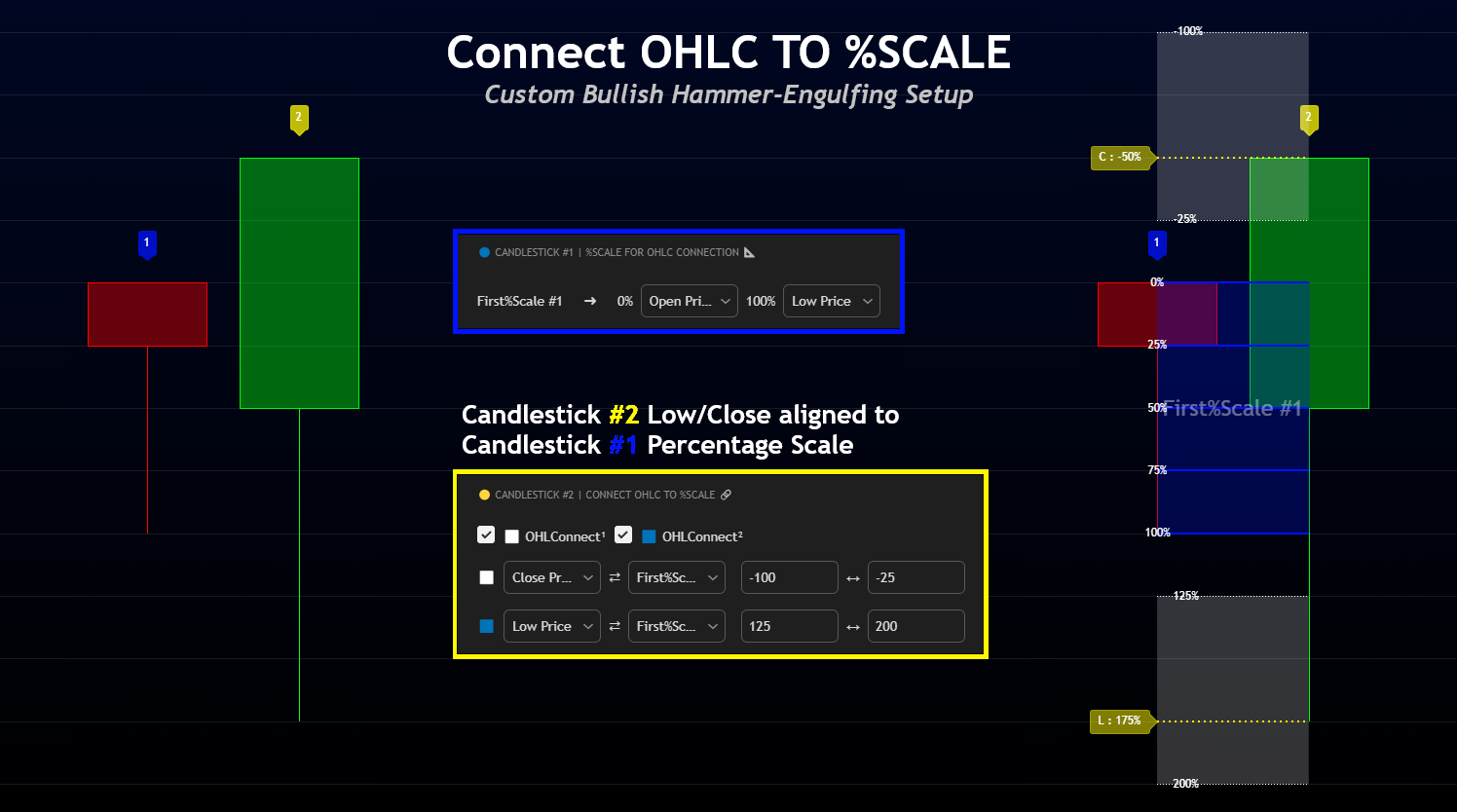

2-Candlestick Pattern: OHLC Connection to Candlestick Percentage Scaling Examples

3-Candlestick Pattern: OHLC Connection to Candlestick Percentage Scaling Examples

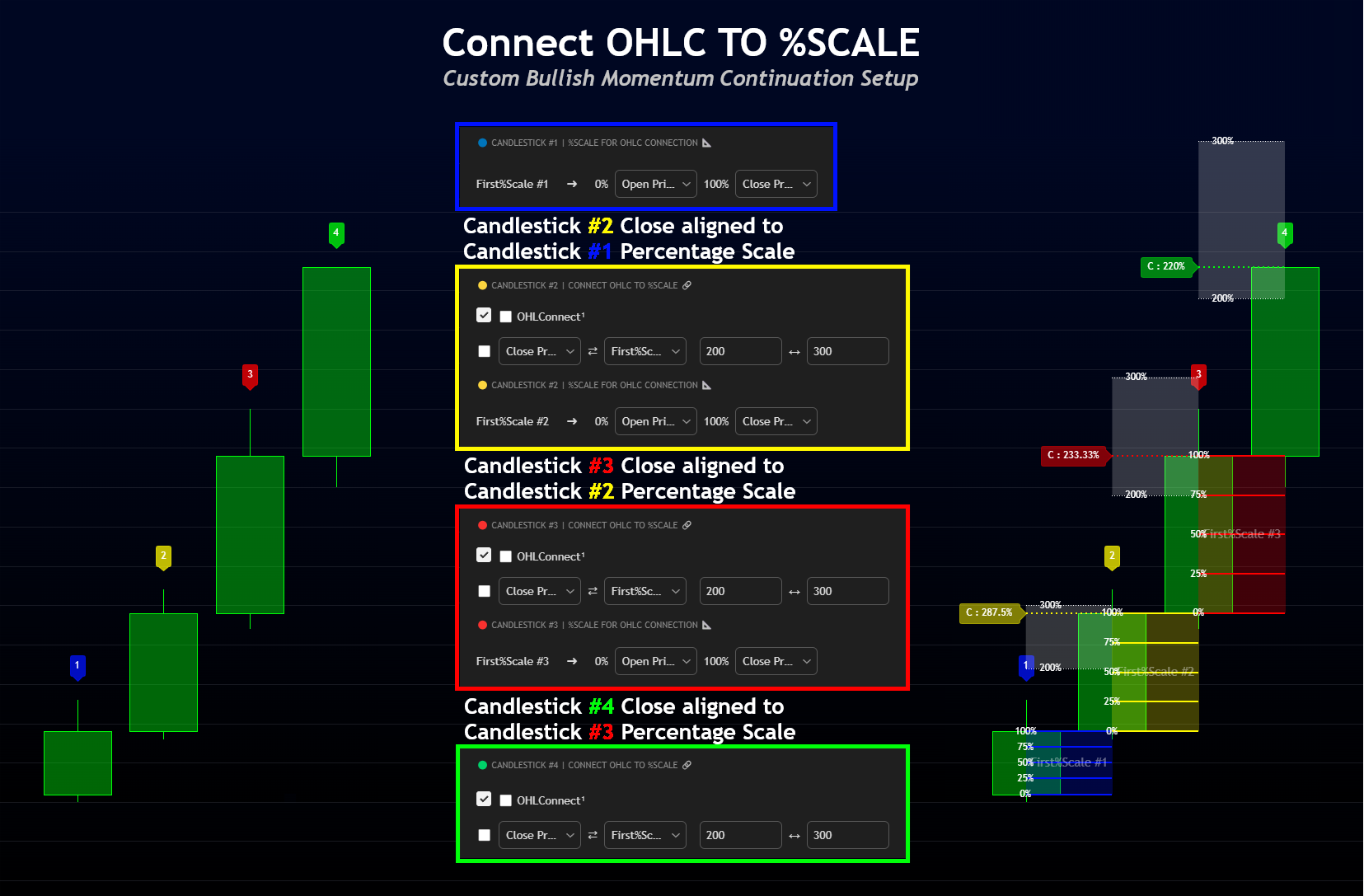

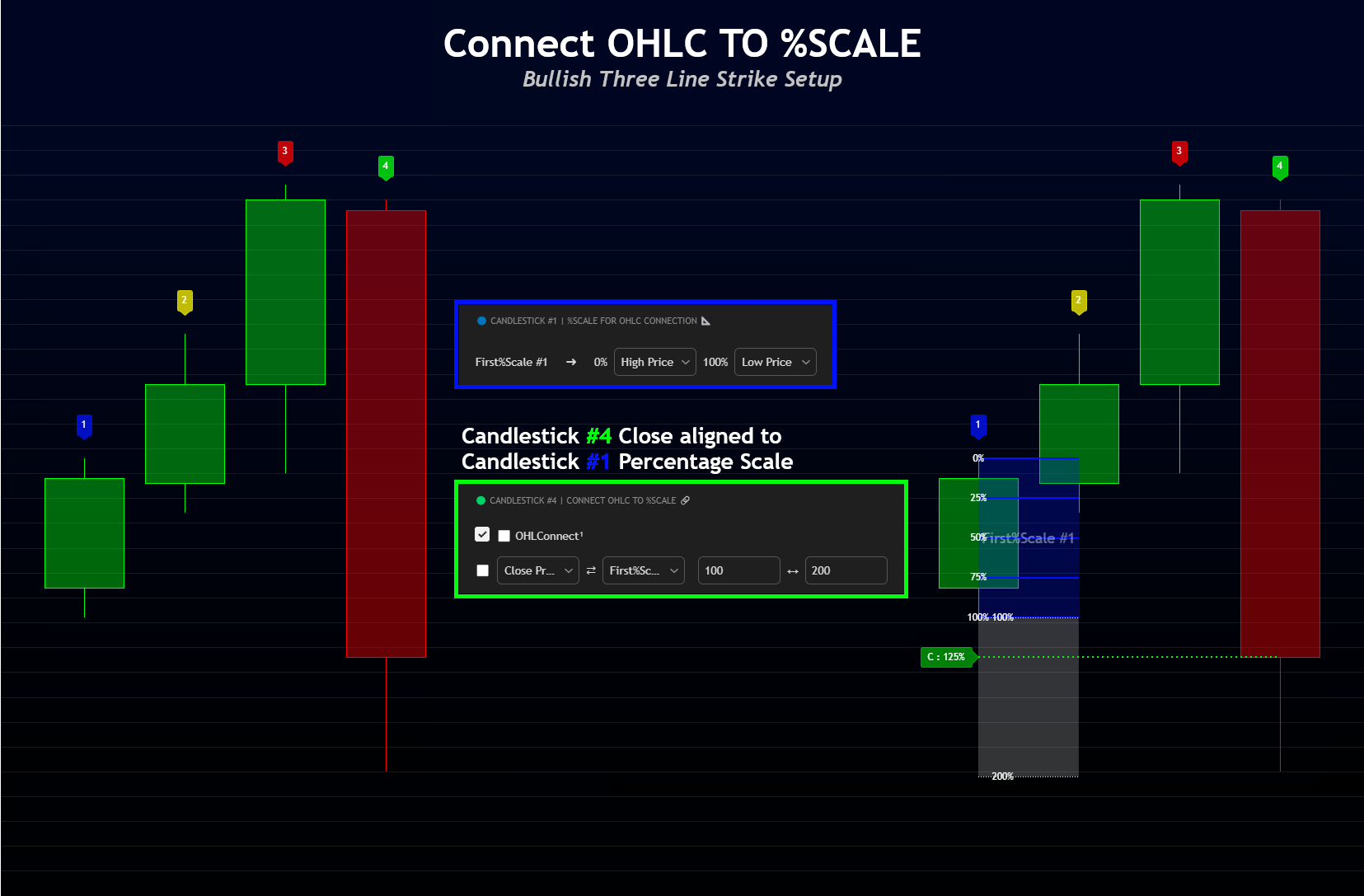

4-Candlestick Pattern: OHLC Connection to Candlestick Percentage Scaling Examples

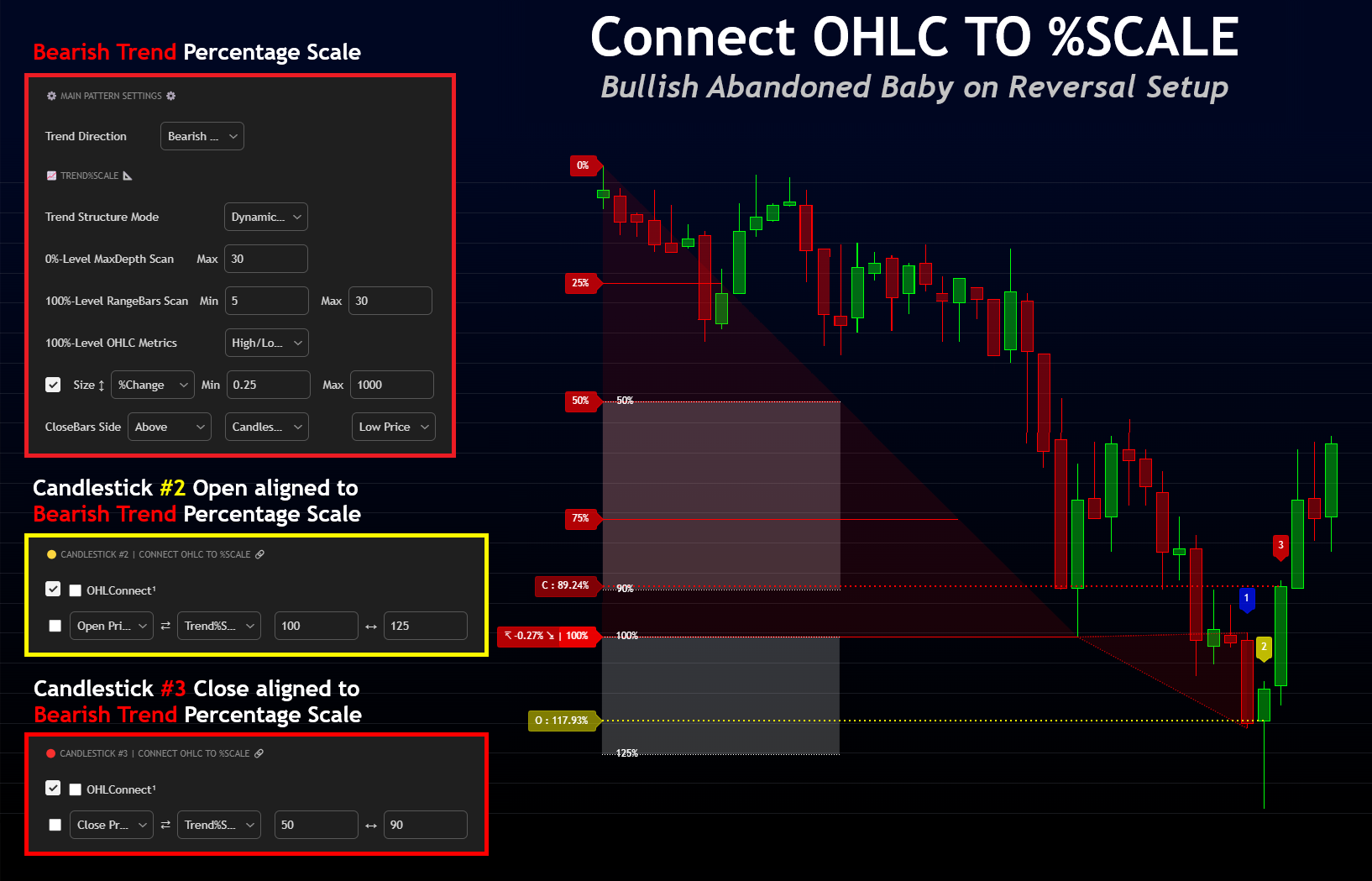

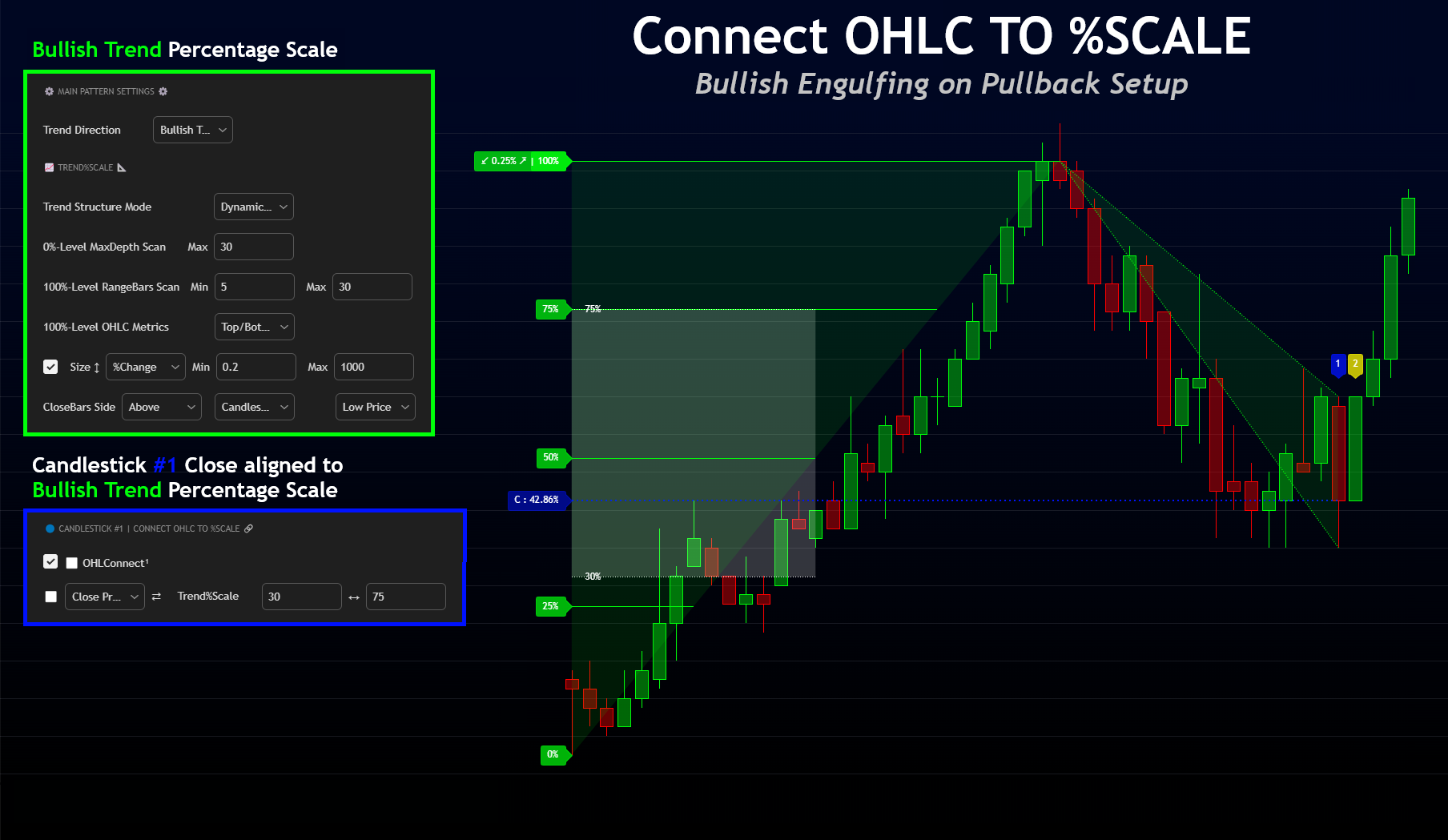

Candlestick Pattern: OHLC Connection to Trend Percentage Scaling Examples
