Overview

Alert Strategy lets you build a highly flexible alert system for your configurations.

You can trigger right at the close of the last candle in your pattern, or go further and place your alert on a specific percentage scale, either on the Trend%Scale or on a chosen candle percentage scale of your choice. You can also combine both methods to be alerted by both condition.

Alerts Strategy

Choose the alert trigger method:

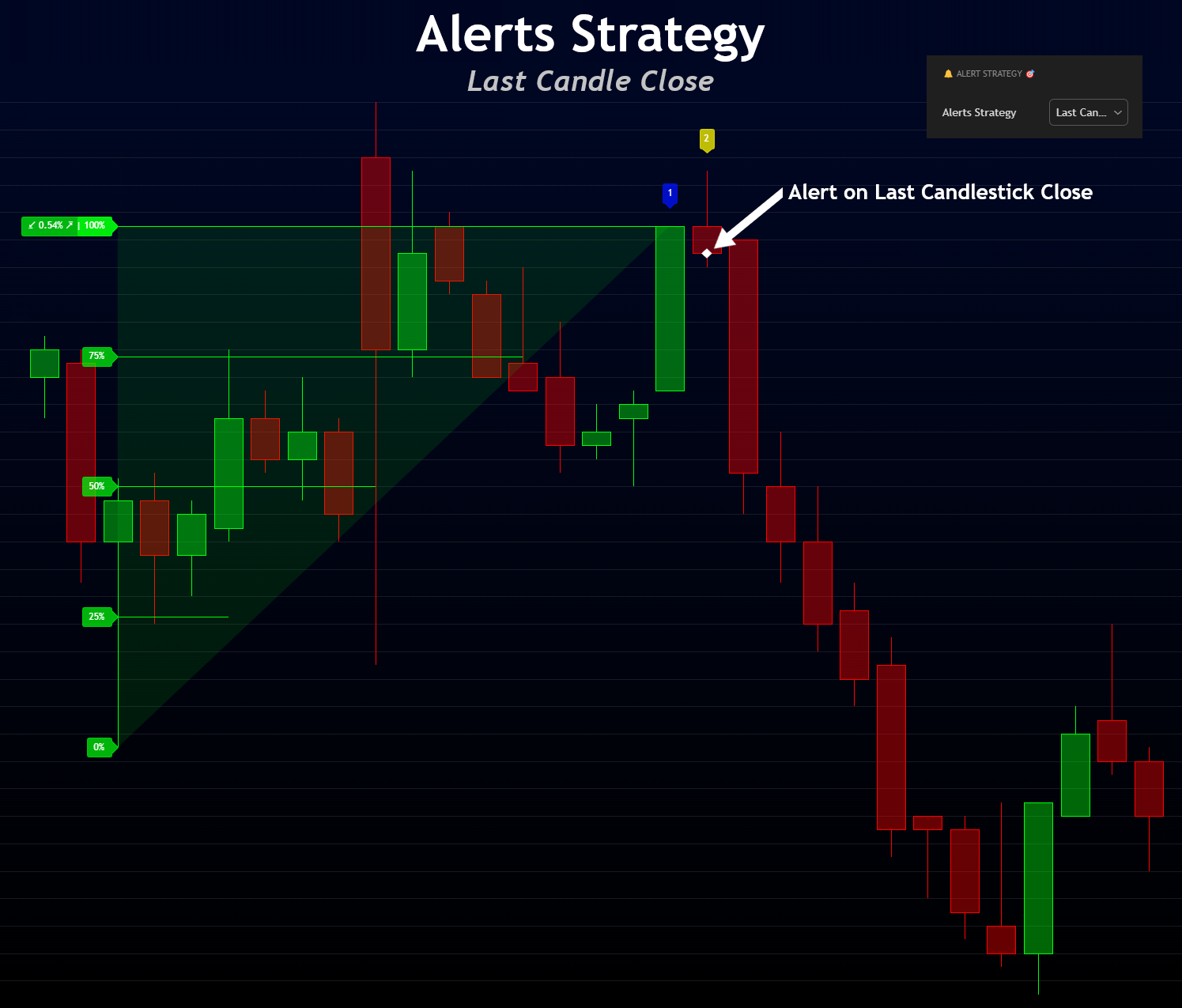

• Last Candle Close → Triggers when the last candlestick of the detected pattern closes.

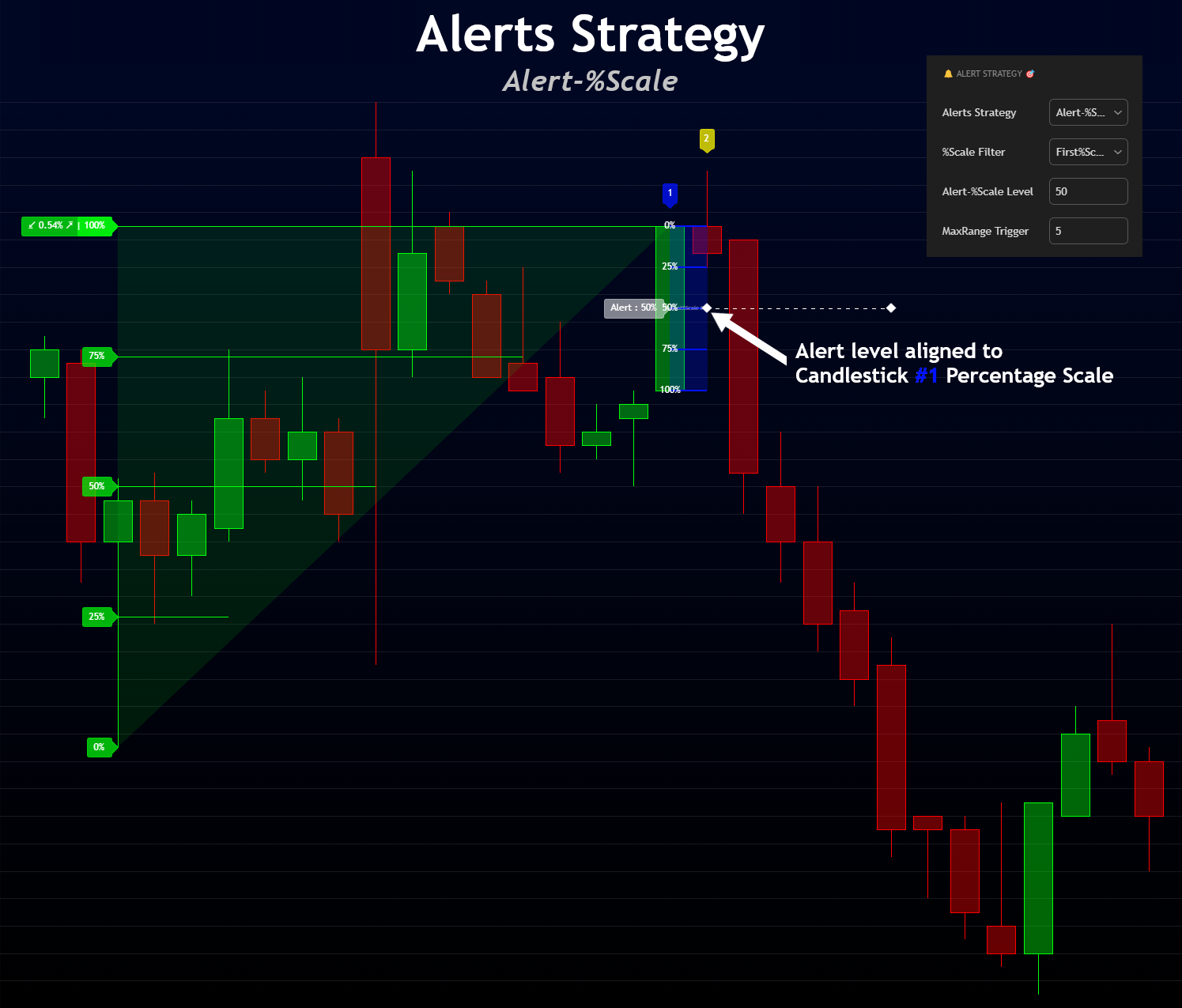

• Alert-%Scale → Triggers when price crosses your chosen %Scale level (from Trend%Scale or a candle's %Scale).

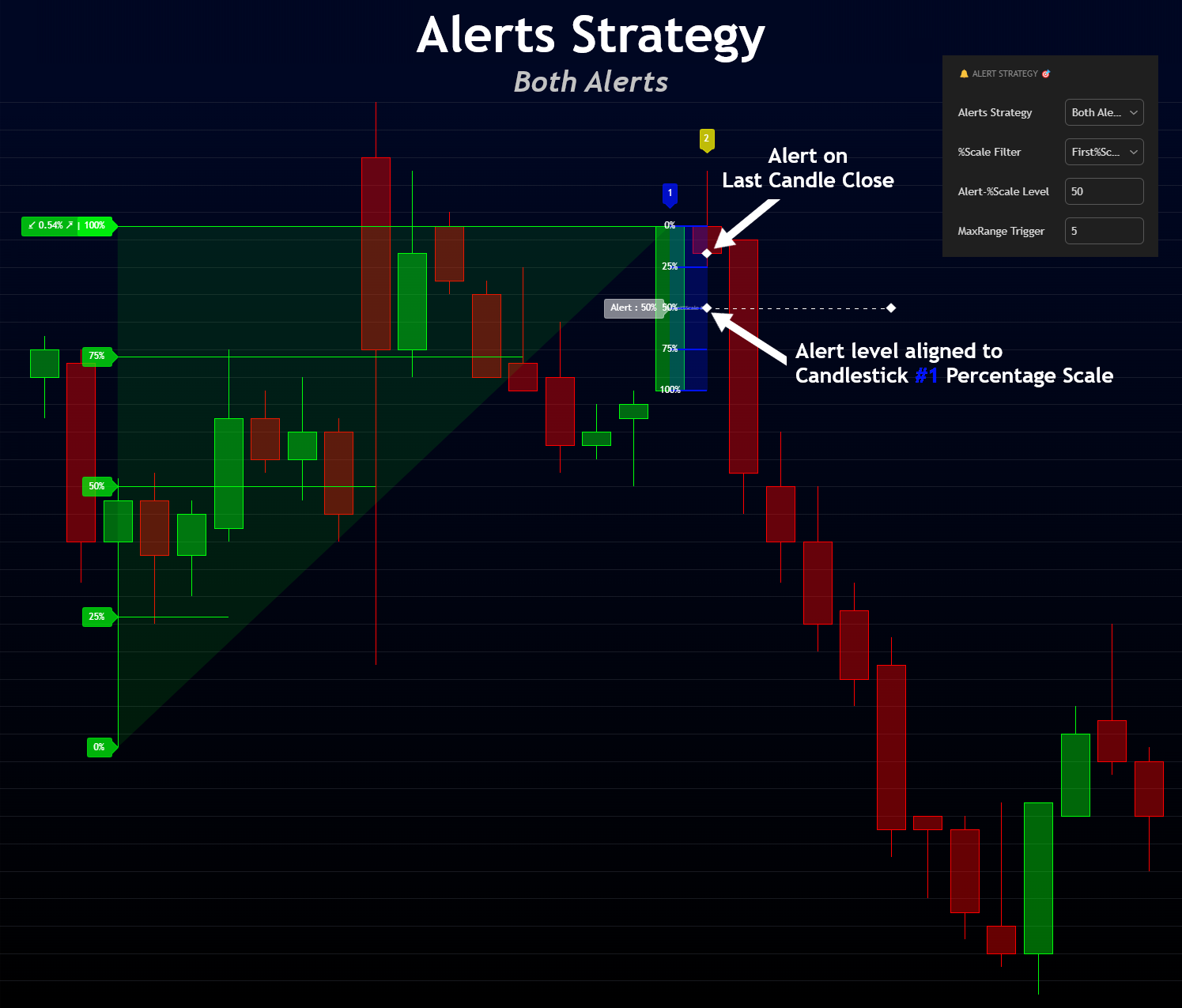

• Both Alerts → Triggers on both condition (close of last candle and %Scale cross).

Examples

Alert-%Scale alerts apply to the most recently detected setup. If a new setup appears, the alert logic references the latest one.

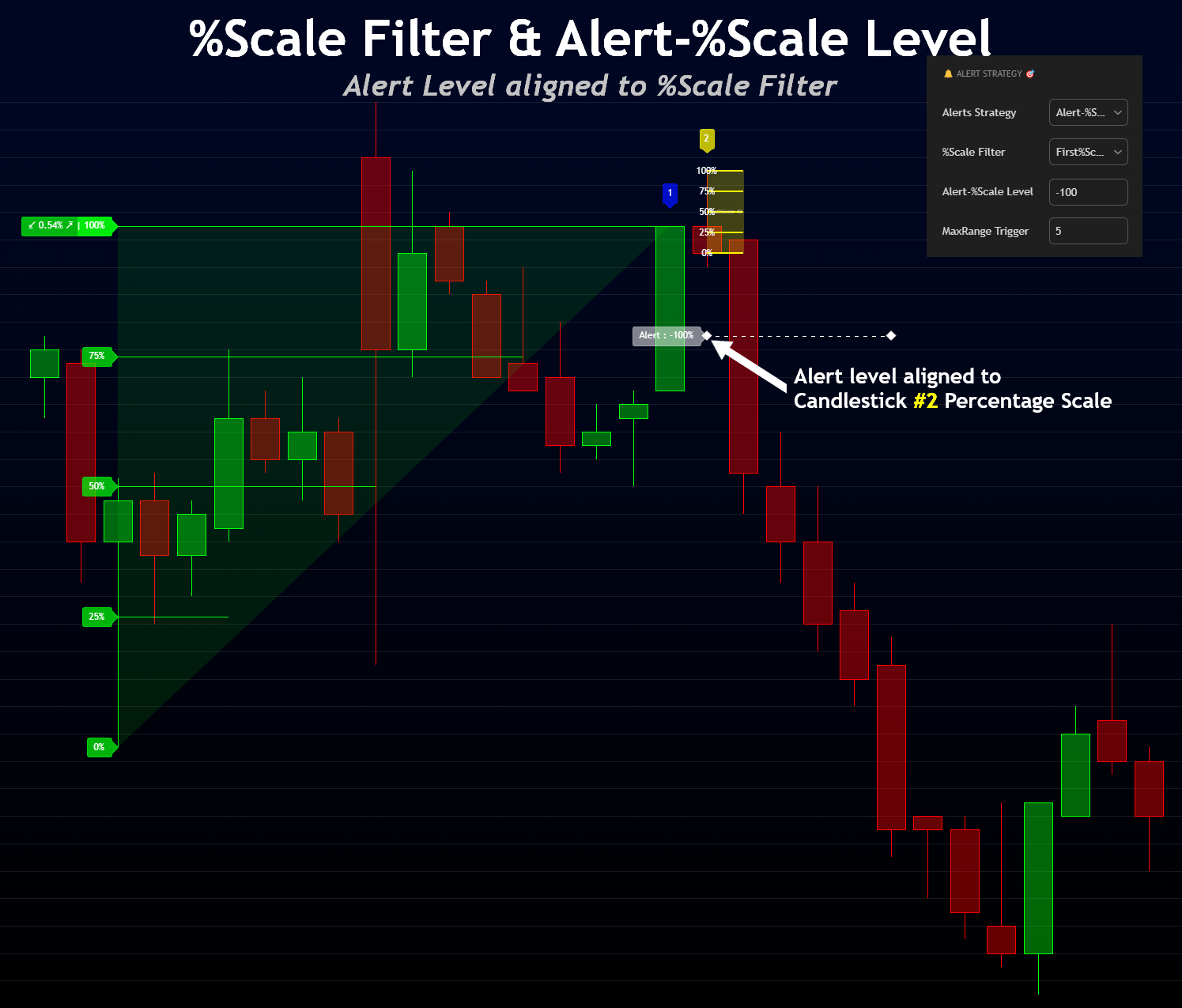

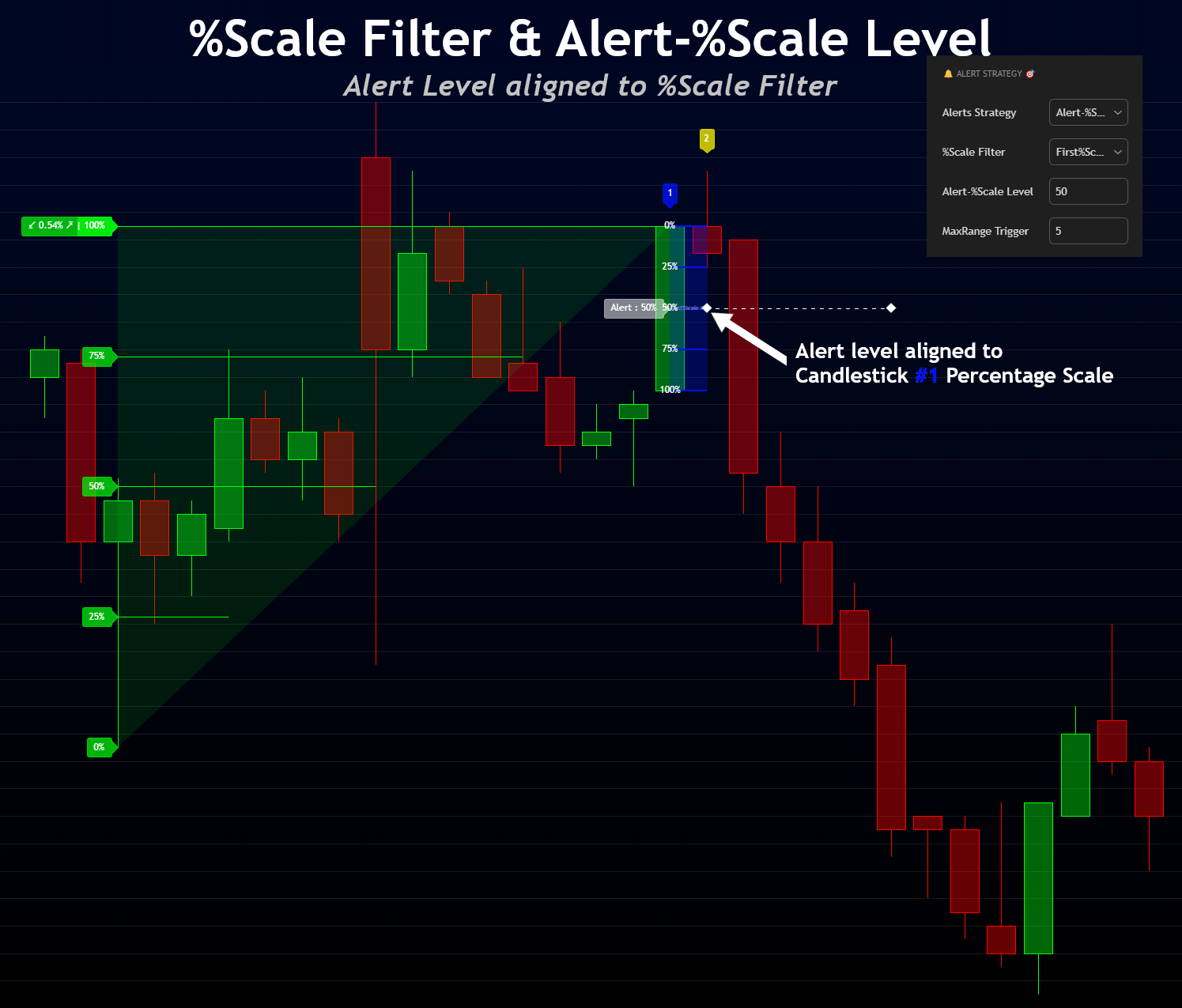

%Scale Filter & Alert-%Scale Level

Select which percentage scale your Alert uses as reference to position his level on %Scale Filter setting.
‍
Then, set the percentage level (Alert-%Scale Level) on the selected percentage scale on %Scale Filter where the Alert is positionned.
‍
(Applies to Alert-%Scale and Both Alerts)

Percentage Scale Choice:

• Trend%Scale
• First%Scale #1 / Second%Scale #1
• First%Scale #2 / Second%Scale #2
• First%Scale #3 / Second%Scale #3
• First%Scale #4

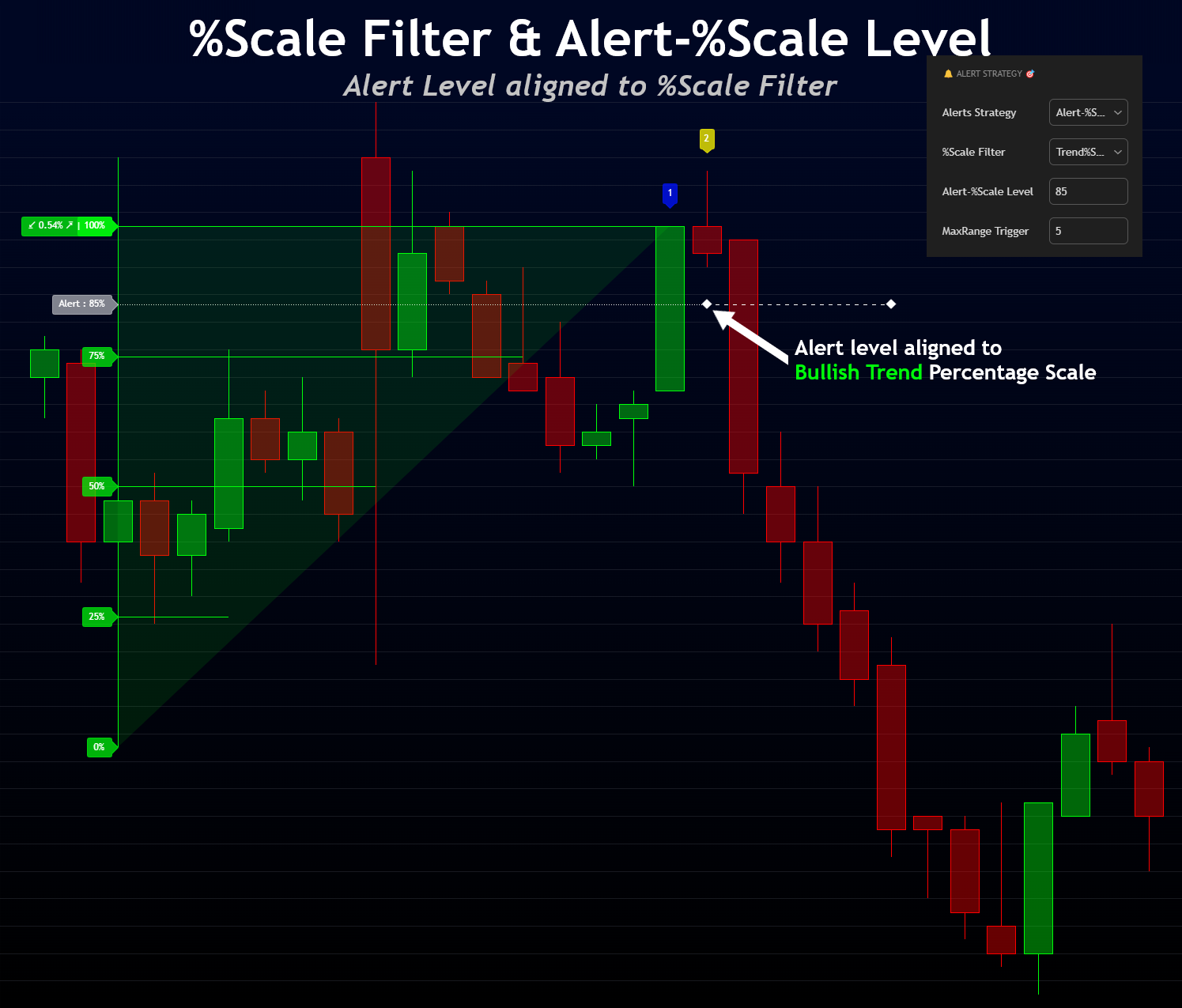

Use Trend%Scale to anchor alerts level to the pre-trend structure, or choose a candle’s First/Second%Scale.

Examples

Trend%Scale is available only if Trend Direction is Bullish or Bearish Trend. Otherwise, pick a First/Second%Scale from one of your pattern candles.

MaxRange Trigger

Define the maximum number of bars after detection during which a %Scale-based alert remains valid. If price doesn’t hit your %Scale alert level within this window, the %Scale alert expires (it won’t trigger for that setup anymore).

(Applies to Alert-%Scale and Both Alerts)

Examples

Keep MaxRange Trigger tight to avoid stale alerts firing far from the original setup context.
